1. Create a Smart Contract
This is the first chapter of the tutorial on building an end-to-end dapp on Aptos. If you haven’t done it, review that introduction, and ensure your environment meets the prerequisites listed there.

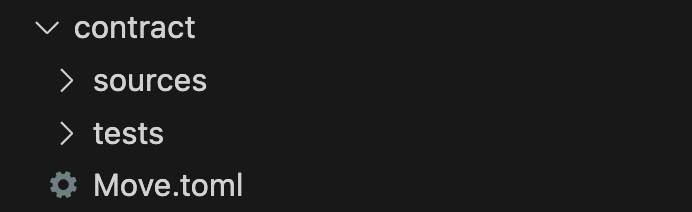

Now that you are all set up, let’s explore the contract
directory.
What is a Move.toml
file?
Section titled “What is a Move.toml file?”A Move.toml
file is a manifest file that contains metadata such as name, version, and dependencies for the package.
Take a look at the new Move.toml
file. You should see your package information and an AptosFramework
dependency. The AptosFramework
dependency points to the aptos-core/aptos-move/framework/aptos-framework
GitHub repo main branch.
Why sources
directory?
Section titled “Why sources directory?”The sources
directory holds a collection of .move
modules files. And later when we want to compile the package using the CLI, the compiler will look for that sources
directory and its Move.toml
file.
What is the tests
directory?
Section titled “What is the tests directory?”The tests
directory holds .move
files that are used to test the files in our sources
directory.
Create a Move module
Section titled “Create a Move module”An account is needed to publish a Move module. When we installed the template, the tool created a new account for us and added it to the .env
file.
If you open that file, you will see content resembling:
PROJECT_NAME=my-first-dappVITE_APP_NETWORK=devnetVITE_APTOS_API_KEY=YOUR_API_KEYVITE_MODULE_PUBLISHER_ACCOUNT_ADDRESS=0x1cecfef9e239eff12fb1a3d189a121c37f48908d86c0e9c02ec103e0a05ddebb#This is the module publisher account's private key. Be cautious about who you share it with, and ensure it is not exposed when deploying your dApp.VITE_MODULE_PUBLISHER_ACCOUNT_PRIVATE_KEY=0x84638fd5c42d0937503111a587307169842f355ab661b5253c01cfe389373f43
The Boilerplate template comes with a pre generated message_board.move
file, a relevant test file and a Move.toml
file. We will not be using message_board.move
in this tutorial, so delete it.
As mentioned, our sources directory holds our .move
module files; so let’s create a new todolist.move
file.
-
Create a new
todolist.move
file within thesources
directory and add the following to that file:module todolist_addr::todolist {} -
Open the
Move.toml
file, replace the name fromMessageBoard
toTodolist
and the address frommessage_board_addr
totodolist_addr
, like the following code:[package]name = "Todolist"version = "1.0.0"authors = [][addresses]todolist_addr = "_"[dependencies]AptosFramework = { git = "https://github.com/aptos-labs/aptos-framework.git", rev = "mainnet", subdir = "aptos-framework" }[dev-dependencies]
What is the '_'
in the Move.toml
file?
Section titled “What is the '_' in the Move.toml file?”The '_'
is a placeholder for the account address. When we run the move
compiler, the compiler will replace it with the actual account address.
Scripts for running move
commands
Section titled “Scripts for running move commands”create-aptos-dapp
comes with premade scripts to easily run move
commands, like compile
, test
and publish
.
- Open each of the files in the
scripts/move
directory and update themessage_board_addr
variable to betodolist_addr
....namedAddresses: {todolist_addr: process.env.VITE_MODULE_PUBLISHER_ACCOUNT_ADDRESS,},...
Our contract logic
Section titled “Our contract logic”Before jumping into writing code, let’s first understand what we want our smart contract program to do. For ease of understanding, we will keep the logic pretty simple:
- An account creates a new list.
- An account creates a new task on their list.
- Whenever someone creates a new task, emit a
TaskCreated
event.
- Whenever someone creates a new task, emit a
- Let an account mark their task as completed.
We can start with defining a TodoList
struct, that holds the:
- tasks array
- a task counter that counts the number of created tasks (we can use that to differentiate between the tasks)
And also create a Task
struct that holds:
task_id
- derived from the TodoList task counter.creator_addr
- the account address who created that task.content
- the task content.completed
- a boolean that marks whether that task is completed or not.
On the todolist.move
file, update the content in the module with:
.../// Main resource that stores all tasks for an accountstruct TodoList has key { tasks: Table<u64, Task>, task_counter: u64}
/// Individual task structurestruct Task has store, drop, copy { task_id: u64, creator_addr: address, content: String, completed: bool,}...
What did we just add?
TodoList
A struct that has the key
and store
abilities:
Key
ability allows struct to be used as a storage identifier. In other words,key
is an ability to be stored at the top-level and act as a storage. We need it here to haveTodoList
be a resource stored in our user account.
When a struct has the key
ability, it turns this struct into a resource
:
Resource
is stored under the account - therefore it exists only when assigned to an account and can be accessed through this account only.
Task
A struct that has the store
, drop
and copy
abilities.
• Store
- Task needs Store
as it’s stored inside another struct (TodoList)
• Copy
- value can be copied (or cloned by value).
• Drop
- value can be dropped by the end of scope.
Let’s try to compile what we have now (Spoiler alert: it will not work):
-
Run:
npm run move:compile
Seeing errors?! Let’s understand them.We have some errors on
Unbound type
- this is happening because we used some types but never imported them, and the compiler doesn’t know where to get them from.On the top of the module, import those types by adding:
...use aptos_std::table::Table;use std::string::String;...That will tell the compiler where it can get those types from.
-
Run the
npm run move:compile
command again; If all goes well, we should see a response resembling (where the resulting account address is your default profile account address):Terminal window Compiling, may take a little while to download git dependencies...UPDATING GIT DEPENDENCY https://github.com/aptos-labs/aptos-core.gitINCLUDING DEPENDENCY AptosFrameworkINCLUDING DEPENDENCY AptosStdlibINCLUDING DEPENDENCY MoveStdlibBUILDING Todolist{"Result": ["1cecfef9e239eff12fb1a3d189a121c37f48908d86c0e9c02ec103e0a05ddebb::todolist"]}At this point, we have successfully compiled our Move module. Yay!
We also have a new move/build
directory (created by the compiler) that holds our compiled modules, build information and sources
directory.
Create list function
Section titled “Create list function”The first thing an account can and should do with our contract is to create a new list.
Creating a list is essentially submitting a transaction, and so we need to know the signer
who signed and submitted the transaction:
-
Add a
create_list
function that accepts asigner
inside theTodolist
module.public entry fun create_list(account: &signer){}Let’s understand the components of this function
-
entry
- an entry function is a function that can be called via transactions. Simply put, whenever you want to submit a transaction to the chain, you should call an entry function. -
&signer
- The signer argument is injected by the Move VM as the address who signed that transaction.
Our code has a
TodoList
resource. Resource is stored under the account; therefore, it exists only when assigned to an account and can be accessed only through this account.That means to create the
TodoList
resource, we need to assign it to an account that only this account can have access to.The
create_list
function can handle thatTodoList
resource creation. -
-
Add the following to the
create_list
function/// Initializes a new todo list for the accountpublic entry fun create_list(account: &signer) {let tasks_holder = TodoList {tasks: table::new(),task_counter: 0};// Move the TodoList resource under the signer accountmove_to(account, tasks_holder);}This function takes in a
signer
, creates a newTodoList
resource, and usesmove_to
to have the resource stored in the provided signer account. -
Let’s make sure everything is still working by running the
npm run move:compile
command again.
Create task function
Section titled “Create task function”As mentioned before, our contract has a create task function that lets an account create a new task. Creating a task is also essentially submitting a transaction, and so we need to know the signer
who signed and submitted the transaction. Another element we want to accept in our function is the task content
.
-
Add a
create_task
function that accepts asigner
and taskcontent
and the function logic./// Creates a new task in the todo listpublic entry fun create_task(account: &signer, content: String) acquires TodoList {// Get the signer addresslet signer_address = signer::address_of(account);// Get the TodoList resourcelet todo_list = borrow_global_mut<TodoList>(signer_address);// Increment task counterlet counter = todo_list.task_counter + 1;// Create a new tasklet new_task = Task {task_id: counter,creator_addr: signer_address,content,completed: false};// Add the new task to the tasks tabletodo_list.tasks.upsert(counter, new_task);// Update the task countertodo_list.task_counter = counter;// Emit a task created eventevent::emit(TaskCreated {task_id: counter,creator_addr: signer_address,content,completed: false})} -
You will notice that we have not created the
TaskCreated
event struct yet. Create it at the top of the file (under the use statements) with the following code:#[event]struct TaskCreated has drop, store {task_id: u64,creator_addr: address,content: String,completed: bool,} -
Since we now use three new modules - signer, event, and table (you can see it being used in
signer::
,event::
, andtable::
) - we need to import these modules. At the top of the file, add those two use statements (replace thetable
use statement with the following code):use aptos_framework::event;use aptos_std::table::{Self, Table}; // This one we already have, need to modify ituse std::signer; -
Let’s make sure everything is still working by running the
npm run move:compile
command again.
Back to the code; what is happening here?
- First, we want to get the signer address, so we can get this account’s
TodoList
resource. - Then, we retrieve the
TodoList
resource with thesigner_address
; with that we have access to theTodoList
properties. - We can now increment the
task_counter
property, and create a newTask
with thesigner_address
,counter
and the providedcontent
. - We push it to the
todo_list.tasks
table that holds all of our tasks along with the newcounter
(which is the table key) and the newly created Task. - Then we assign the global
task_counter
to be the new incremented counter. - Finally, we emit the
TaskCreated
event that holds the new Task data.event::emit()
is anaptos-framework
function that emits a module event with payloadmsg
. In our case, we are passing the function aTaskCreated
event struct with the new Task data.
Complete task function
Section titled “Complete task function”Another function we want our contract to hold is the option to mark a task as completed.
-
Add a
complete_task
function that accepts asigner
and atask_id
:/// Marks a task as completedpublic entry fun complete_task(account: &signer, task_id: u64) acquires TodoList {// Get the signer addresslet signer_address = signer::address_of(account);// Get the TodoList resourcelet todo_list = borrow_global_mut<TodoList>(signer_address);// Get the task recordlet task_record = todo_list.tasks.borrow_mut(task_id);// Mark the task as completedtask_record.completed = true;}Let’s understand the code.
- As before in our create list function, we retrieve the
TodoList
struct by the signer address, so we can have access to the tasks table that holds all the account tasks. - Then, we get a mutable reference for the task with the provided
task_id
on thetodo_list.tasks
table. - Finally, we update that task
completed
property to be true.
- As before in our create list function, we retrieve the
-
Now compile the code by running:
npm run move:compile
to make sure everything is still working.
Add validations
Section titled “Add validations”As this code now compiles, we want to have some validations and checks before creating a new task or updating the task as completed, so we can be sure our functions work as expected.
-
Add a check to the
create_task
function to make sure the signer account has a list:public entry fun create_task(account: &signer, content: String) acquires TodoList {// gets the signer addresslet signer_address = signer::address_of(account);// assert signer has created a listassert!(exists<TodoList>(signer_address), 1);...} -
Add a check to the
complete_task
function to make sure the:- signer has created a list.
- task exists.
- task is not completed.
With the following code:
/// Marks a task as completedpublic entry fun complete_task(account: &signer, task_id: u64) acquires TodoList {// Get the signer addresslet signer_address = signer::address_of(account);// Ensure the account has initialized a todo listassert!(exists<TodoList>(signer_address), 1);// Get the TodoList resourcelet todo_list = borrow_global_mut<TodoList>(signer_address);// Ensure the task existsassert!(todo_list.tasks.contains(task_id), 2);// Get the task recordlet task_record = todo_list.tasks.borrow_mut(task_id);// Ensure the task is not already completedassert!(task_record.completed == false, 3);// Mark the task as completedtask_record.completed = true;}
We just added our first assert
statements!
If you noticed, assert
accepts two arguments: the first is what to check for, and the second is an error code. Instead of passing in an arbitrary number, a convention is to declare errors
on the top of the module file and use these instead.
On the top of the module file (under the use
statements), add those error declarations:
// Errors/// Account has not initialized a todo listconst ENOT_INITIALIZED: u64 = 1;/// Task does not existconst ETASK_DOESNT_EXIST: u64 = 2;/// Task is already completedconst ETASK_IS_COMPLETED: u64 = 3;
Now we can update our asserts with these constants:
/// Creates a new task in the todo listpublic entry fun create_task(account: &signer, content: String) acquires TodoList { // Get the signer address let signer_address = signer::address_of(account);
// Ensure the account has initialized a todo list assert!(exists<TodoList>(signer_address), ENOT_INITIALIZED);
...}
/// Marks a task as completedpublic entry fun complete_task(account: &signer, task_id: u64) acquires TodoList { // Get the signer address let signer_address = signer::address_of(account);
// Ensure the account has initialized a todo list assert!(exists<TodoList>(signer_address), ENOT_INITIALIZED);
// Get the TodoList resource let todo_list = borrow_global_mut<TodoList>(signer_address);
// Ensure the task exists assert!(todo_list.tasks.contains(task_id), ETASK_DOESNT_EXIST);
// Get the task record let task_record = todo_list.tasks.borrow_mut(task_id);
// Ensure the task is not already completed assert!(task_record.completed == false, ETASK_IS_COMPLETED);
// Mark the task as completed task_record.completed = true;}
WONDERFUL!!
Let’s stop for one moment and make sure our code compiles by running the npm run move:compile
command. If all goes well, we should output resembling:
Compiling, may take a little while to download git dependencies...UPDATING GIT DEPENDENCY https://github.com/aptos-labs/aptos-core.gitINCLUDING DEPENDENCY AptosFrameworkINCLUDING DEPENDENCY AptosStdlibINCLUDING DEPENDENCY MoveStdlibBUILDING MessageBoard{ "Result": [ "1cecfef9e239eff12fb1a3d189a121c37f48908d86c0e9c02ec103e0a05ddebb::todolist" ]}
If you encounter errors, make sure you followed the steps above correctly and try to determine the cause of the issues.
Write tests
Section titled “Write tests”Now that we have our smart contract logic ready, we need to add some tests for it.
First, delete the test_end_to_end.move
file in the tests
directory, as we won’t be using it.
-
For simplicity, and because we don’t have much code to test, we will have the tests in the
todolist.move
file. If you need to write a more complex test, you should create a separate test file in thetests
directory.The test steps are:
// create a list// create a task// update task as completed -
Add the following code to the bottom of the
todolist.move
file:#[test]public entry fun test_flow() {}Note: Test functions use the
#[test]
annotation. -
Update the test function to be:
#[test(admin = @0x123)]public entry fun test_flow(admin: signer) acquires TodoList {// Create an admin account for testingaccount::create_account_for_test(signer::address_of(&admin));// Initialize a todo list for the admin accountcreate_list(&admin);// Create a task and verify it was added correctlycreate_task(&admin, string::utf8(b"Create e2e guide video for aptos devs."));let todo_list = borrow_global<TodoList>(signer::address_of(&admin));assert!(todo_list.task_counter == 1, 5);// Verify task detailslet task_record = todo_list.tasks.borrow(todo_list.task_counter);assert!(task_record.task_id == 1, 6);assert!(task_record.completed == false, 7);assert!(task_record.content == string::utf8(b"Create e2e guide video for aptos devs."), 8);assert!(task_record.creator_addr == signer::address_of(&admin), 9);// Complete the task and verify it was marked as completedcomplete_task(&admin, 1);let todo_list = borrow_global<TodoList>(signer::address_of(&admin));let task_record = todo_list.tasks.borrow(1);assert!(task_record.task_id == 1, 10);assert!(task_record.completed == true, 11);assert!(task_record.content == string::utf8(b"Create e2e guide video for aptos devs."), 12);assert!(task_record.creator_addr == signer::address_of(&admin), 13);}Our
#[test]
annotation has changed and declares an account variable.Additionally, the function itself now accepts a signer argument.
Let’s understand our tests.
Since our tests run outside an account scope, we need to create accounts to use in our tests. The
#[test]
annotation gives us the option to declare those accounts. We use anadmin
account and set it to a random account address (@0x123
). The function accepts this signer (account) and creates it by using a built-in function to create an account for test.Then we simply go through the flow by:
- creating a list
- creating a task
- updating a task as completed
And assert the expected data/behavior at each step.
Before running the tests again, we need to import (
use
) some new modules we are now employing in our code: -
At the top of the file, add these
use
statements:#[test_only]use aptos_framework::account;#[test_only]use std::string::{Self};Note that we are using the
#[test_only]
annotation to import the modules only for testing. This is because we don’t want to use these modules in our production code. -
Run the
npm run move:test
command. If all goes right, we should see a success message like:Running Move unit tests[ PASS ] 0x1cecfef9e239eff12fb1a3d189a121c37f48908d86c0e9c02ec103e0a05ddebb::todolist::test_flowTest result: OK. Total tests: 1; passed: 1; failed: 0{"Result": "Success"} -
Let’s add one more test to make sure our
complete_task
function works as expected. Add another test function with:#[test(admin = @0x123)]#[expected_failure(abort_code = ENOT_INITIALIZED)]public entry fun account_can_not_update_task(admin: signer) acquires TodoList {// Create an admin account for testingaccount::create_account_for_test(signer::address_of(&admin));// Attempt to complete a task without creating a list first (should fail)complete_task(&admin, 2);}This test confirms that an account can’t use that function if they haven’t created a list before.
The test also uses a special annotation
#[expected_failure]
that, as the name suggests, expects to fail with anENOT_INITIALIZED
error code. -
Run the
npm run move:test
command. If all goes right, we should see a success message like:Terminal window Running Move unit tests[ PASS ] 0x1cecfef9e239eff12fb1a3d189a121c37f48908d86c0e9c02ec103e0a05ddebb::todolist::account_can_not_update_task[ PASS ] 0x1cecfef9e239eff12fb1a3d189a121c37f48908d86c0e9c02ec103e0a05ddebb::todolist::test_flowTest result: OK. Total tests: 2; passed: 2; failed: 0{"Result": "Success"}
Now that everything works, we can compile the Move modules and publish the Move package to chain so our React app (and everyone else) can interact with our smart contract!
Publish todolist module to chain
Section titled “Publish todolist module to chain”- Run:
npm run move:test
andnpm run move:compile
- all should work without errors. - Run:
npm run move:publish
- Enter
yes
to the promptDo you want to publish this package at object address 0x8f66343d40de3eeef5dd45cab8c1531a542f0e5f546da9f11852d4c2b30165a7 [yes/no] >
. (Spoiler alert: it will fail)
Oh no! We got an error!
It complains about an account mismatch with the MODULE_ADDRESS_DOES_NOT_MATCH_SENDER
error code. Apparently we compiled the package with a different account we try to publish it.
Let’s fix it.
- Open the
scripts/move/publish.js
file. - Update the
addressName
variable value to betodolist_addr
.
That will use the same account we used for compiling the package.
Let’s try again:
-
Run:
npm run move:publish
-
Enter
yes
in the prompt. -
Enter
yes
in the second prompt. -
That will compile, simulate and finally publish your module into devnet. You should see a success message:
Terminal window Transaction submitted: https://explorer.aptoslabs.com/txn/0x68dadf24b9ec29b9c32bd78836d20032de615bbef5f10db580228577f7ca945a?network=devnetCode was successfully deployed to object address 0x2bce4f7bb8a67641875ba5076850d2154eb9621b0c021982bdcd80731279efa6{"Result": "Success"} -
You can now head to the Aptos Explorer link and view the transaction details. You can also see the module published on chain by looking for the object address.
Full Todolist module code
Section titled “Full Todolist module code”Here is the full todolist.move
file to confirm your work:
module todolist_addr::todolist { use aptos_framework::event; use aptos_std::table::{Self, Table}; use std::signer; use std::string::String;
#[test_only] use aptos_framework::account; #[test_only] use std::string::{Self};
// Errors /// Account has not initialized a todo list const ENOT_INITIALIZED: u64 = 1; /// Task does not exist const ETASK_DOESNT_EXIST: u64 = 2; /// Task is already completed const ETASK_IS_COMPLETED: u64 = 3;
#[event] struct TaskCreated has drop, store { task_id: u64, creator_addr: address, content: String, completed: bool, }
/// Main resource that stores all tasks for an account struct TodoList has key { tasks: Table<u64, Task>, task_counter: u64 }
/// Individual task structure struct Task has store, drop, copy { task_id: u64, creator_addr: address, content: String, completed: bool, }
/// Initializes a new todo list for the account public entry fun create_list(account: &signer) { let tasks_holder = TodoList { tasks: table::new(), task_counter: 0 }; // Move the TodoList resource under the signer account move_to(account, tasks_holder); }
/// Creates a new task in the todo list public entry fun create_task(account: &signer, content: String) acquires TodoList { // Get the signer address let signer_address = signer::address_of(account);
// Ensure the account has initialized a todo list assert!(exists<TodoList>(signer_address), ENOT_INITIALIZED);
// Get the TodoList resource let todo_list = borrow_global_mut<TodoList>(signer_address);
// Increment task counter let counter = todo_list.task_counter + 1;
// Create a new task let new_task = Task { task_id: counter, creator_addr: signer_address, content, completed: false };
// Add the new task to the tasks table todo_list.tasks.upsert(counter, new_task);
// Update the task counter todo_list.task_counter = counter;
// Emit a task created event event::emit(TaskCreated { task_id: counter, creator_addr: signer_address, content, completed: false }) }
/// Marks a task as completed public entry fun complete_task(account: &signer, task_id: u64) acquires TodoList { // Get the signer address let signer_address = signer::address_of(account);
// Ensure the account has initialized a todo list assert!(exists<TodoList>(signer_address), ENOT_INITIALIZED);
// Get the TodoList resource let todo_list = borrow_global_mut<TodoList>(signer_address);
// Ensure the task exists assert!(todo_list.tasks.contains(task_id), ETASK_DOESNT_EXIST);
// Get the task record let task_record = todo_list.tasks.borrow_mut(task_id);
// Ensure the task is not already completed assert!(task_record.completed == false, ETASK_IS_COMPLETED);
// Mark the task as completed task_record.completed = true; }
#[test(admin = @0x123)] public entry fun test_flow(admin: signer) acquires TodoList { // Create an admin account for testing account::create_account_for_test(signer::address_of(&admin));
// Initialize a todo list for the admin account create_list(&admin);
// Create a task and verify it was added correctly create_task(&admin, string::utf8(b"Create e2e guide video for aptos devs.")); let todo_list = borrow_global<TodoList>(signer::address_of(&admin)); assert!(todo_list.task_counter == 1, 5);
// Verify task details let task_record = todo_list.tasks.borrow(todo_list.task_counter); assert!(task_record.task_id == 1, 6); assert!(task_record.completed == false, 7); assert!(task_record.content == string::utf8(b"Create e2e guide video for aptos devs."), 8); assert!(task_record.creator_addr == signer::address_of(&admin), 9);
// Complete the task and verify it was marked as completed complete_task(&admin, 1); let todo_list = borrow_global<TodoList>(signer::address_of(&admin)); let task_record = todo_list.tasks.borrow(1); assert!(task_record.task_id == 1, 10); assert!(task_record.completed == true, 11); assert!(task_record.content == string::utf8(b"Create e2e guide video for aptos devs."), 12); assert!(task_record.creator_addr == signer::address_of(&admin), 13); }
#[test(admin = @0x123)] #[expected_failure(abort_code = ENOT_INITIALIZED)] public entry fun account_can_not_update_task(admin: signer) acquires TodoList { // Create an admin account for testing account::create_account_for_test(signer::address_of(&admin));
// Attempt to complete a task without creating a list first (should fail) complete_task(&admin, 2); }}
Now let’s set up the frontend in chapter 2.
